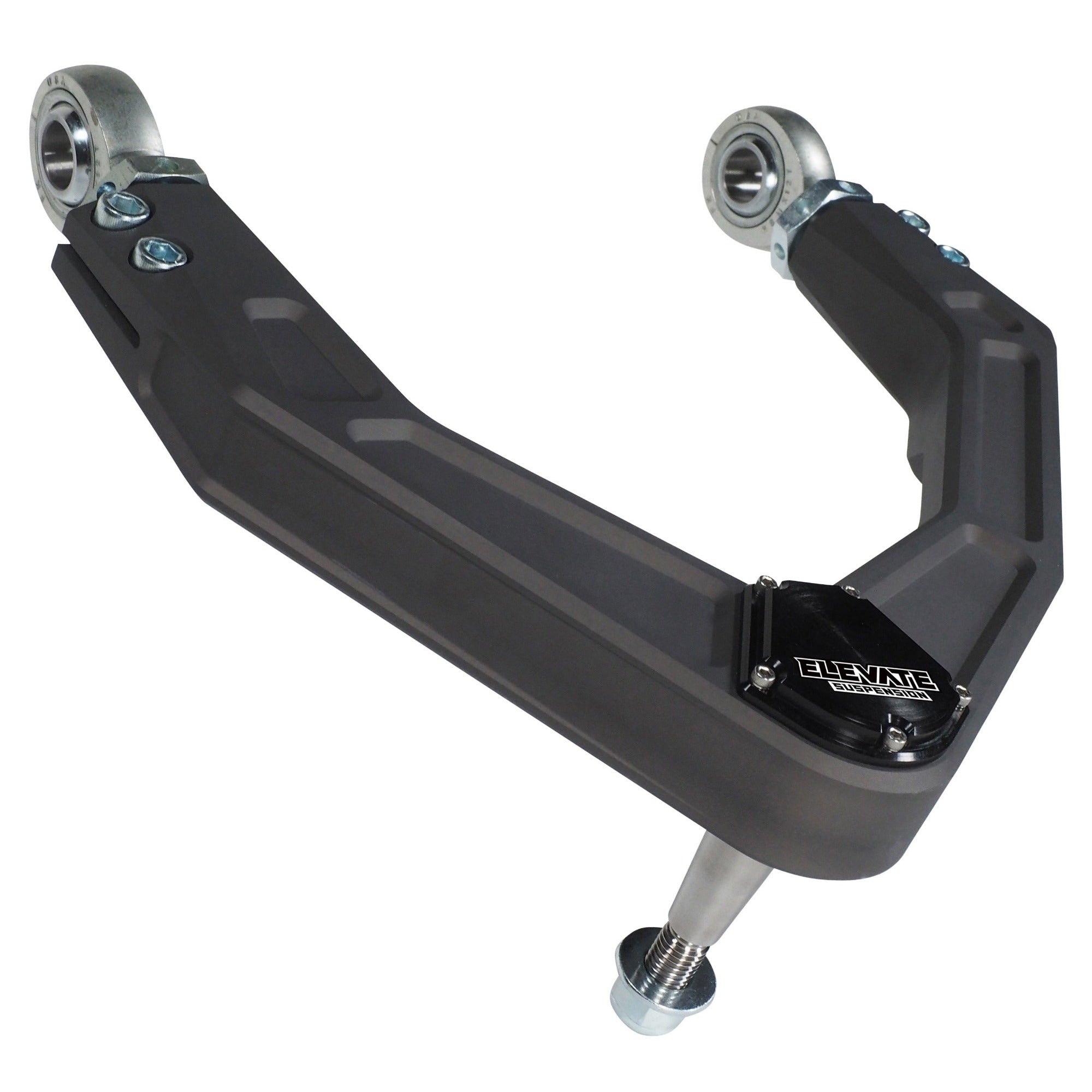

The Ford Ranger is a solid choice in mid-size trucks, and our Elevate Suspension Upper Control Arms can help unlock its full potential. Stout features like ¾-inch FK rod ends, 1-inch FK uniballs, custom-machined 17-4 stainless steel pins, and lightweight 6061-T6 billet aluminum construction make our arms strong enough to take on any terrain. With their mil-spec Type III hard anodized coating, they can withstand the elements and look great. Double adjusters allow for easy adjustment of camber and caster for proper alignment. Our arms maximize droop travel when paired with extended travel coilovers. Elevate Upper Control Arms will help to maximize your Ford Ranger's wheel travel, fit larger tires, achieve proper alignment, and add strength.
- Precision 6061-T6 billet aluminum construction using a five-axis CNC machine.

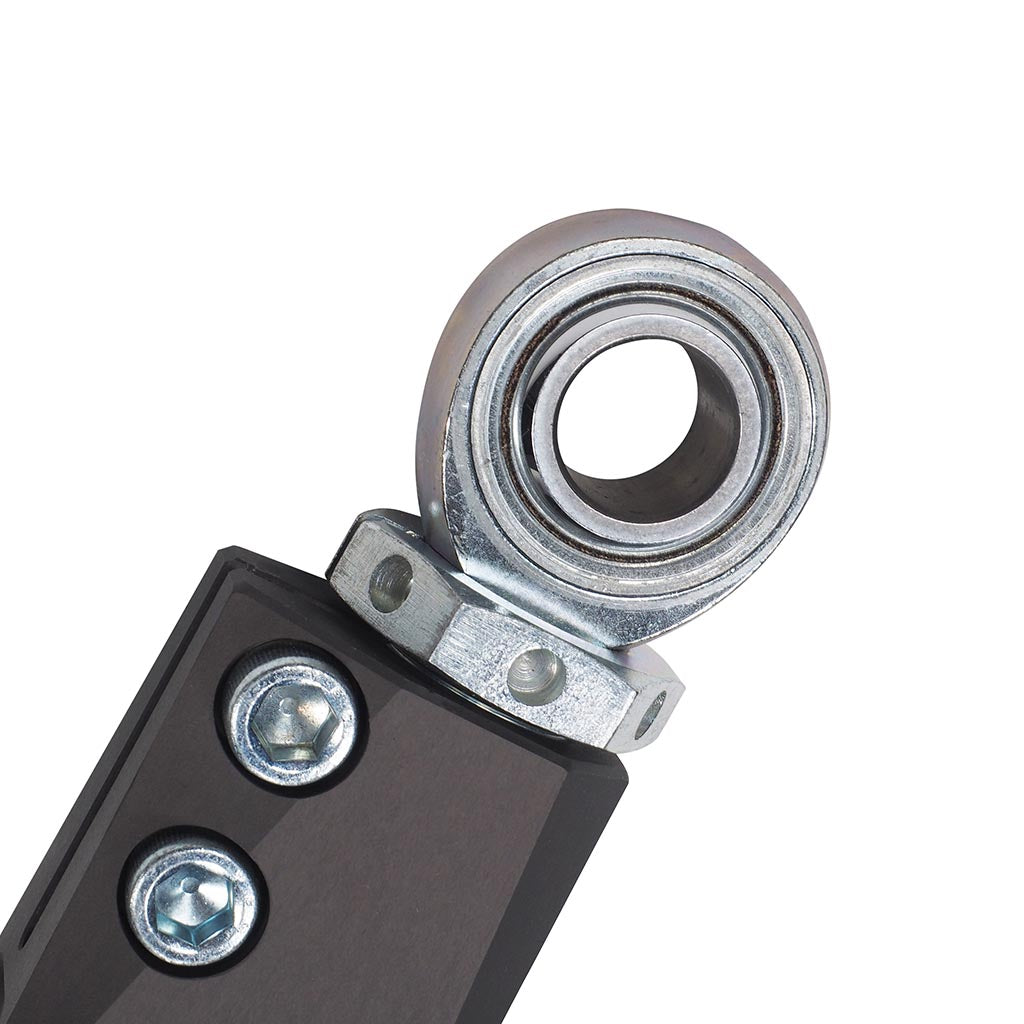

- Premium heat-treated ¾-inch FK rod ends with PTFE liners and a clear zinc finish.

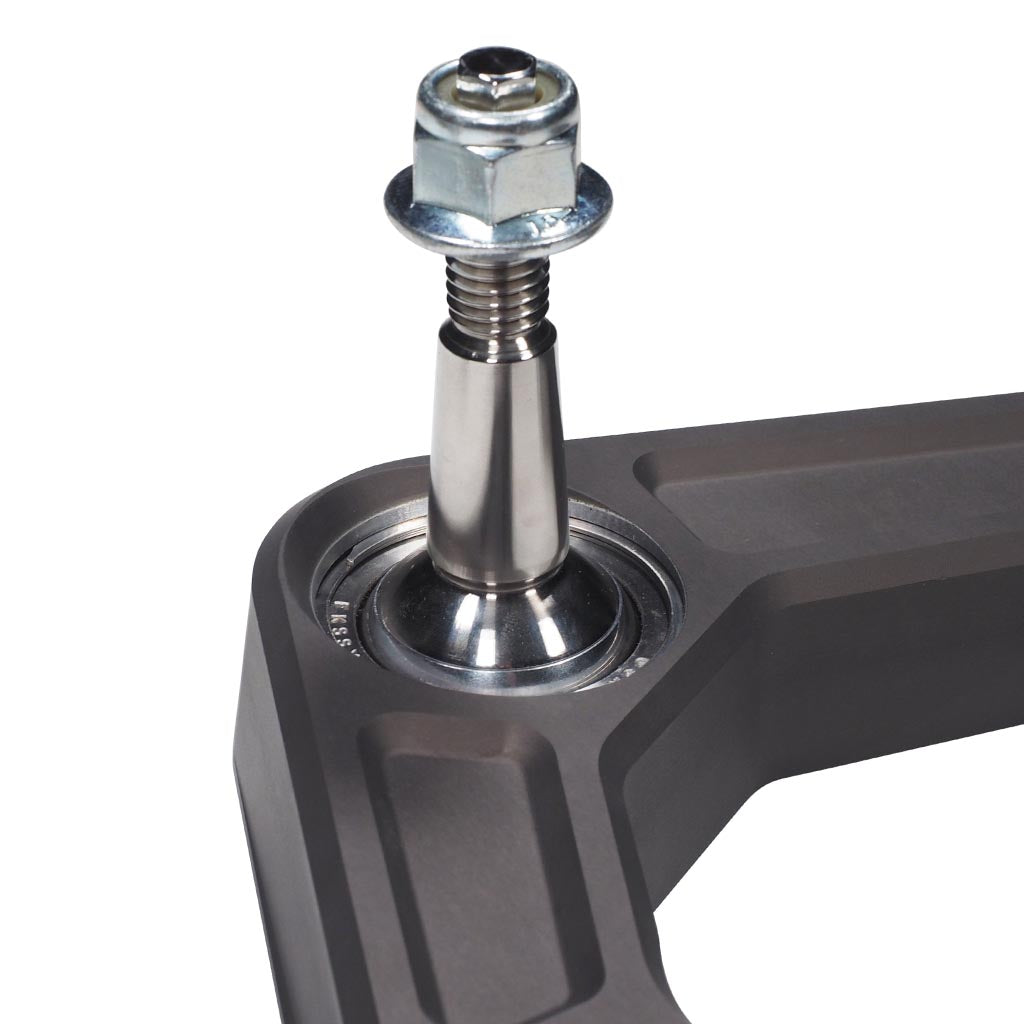

- Super stout 1-inch diameter FK heat-treated and hard chrome-plated uniballs.
- FK stainless steel heat-treated uniball races with PTFE liners for durability and extended life.

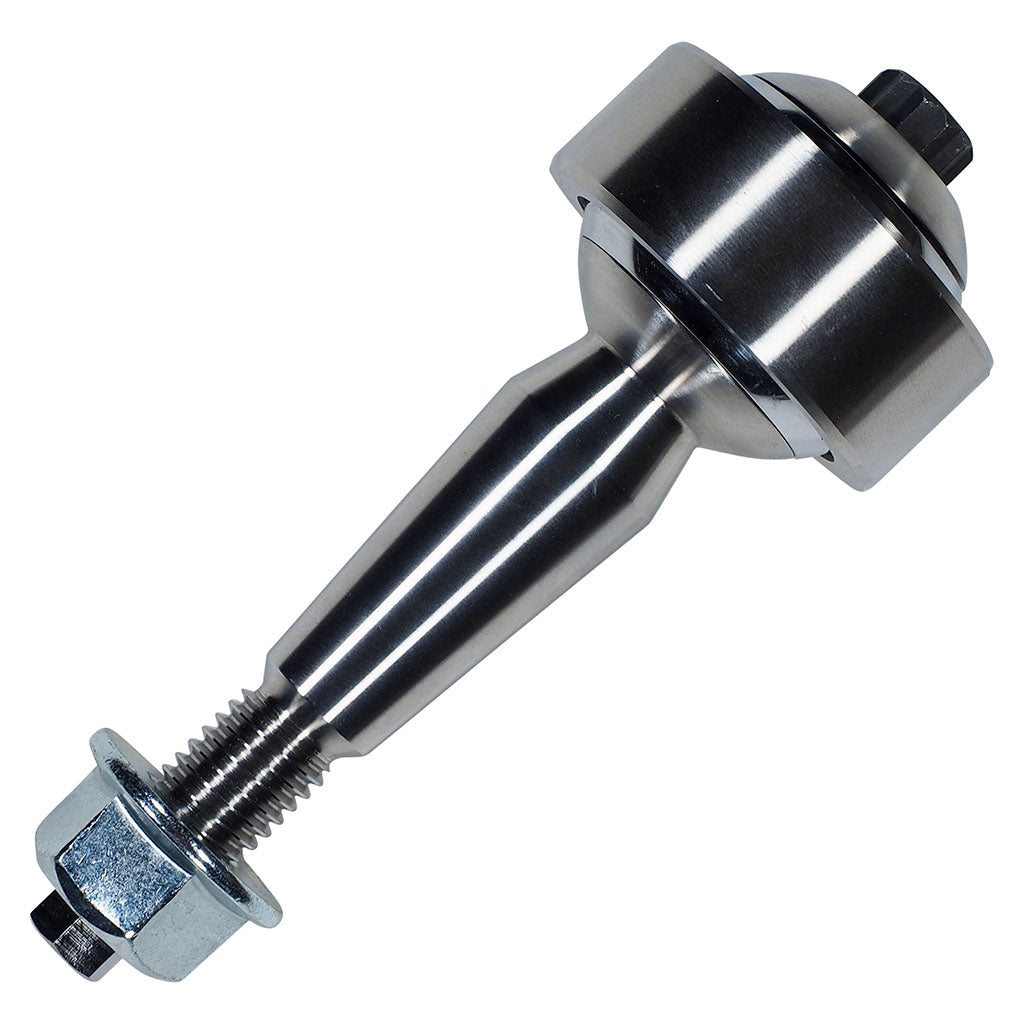

- Custom-made 17-4 stainless steel heat-treated pins and caps for maximum strength.

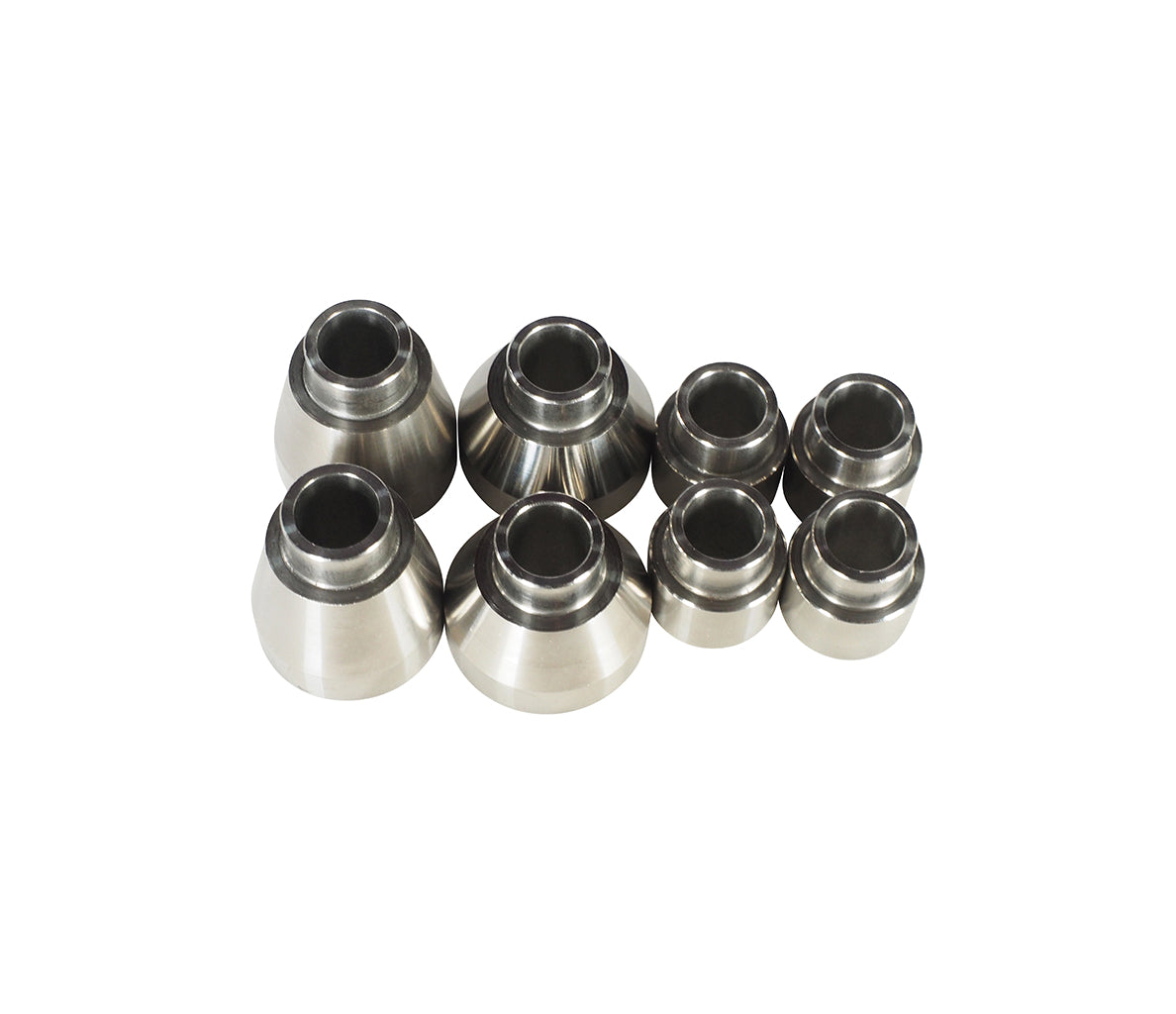

- Misalignment spacers made from high-quality 303 stainless steel.
- 6061-T6 billet aluminum dust caps with integrated O-ring seals that protect the uniballs and look great.
- Vehicle-specific chamfers allow maximum coil and reservoir clearance
- Premium clear zinc coated Allen fasteners for use in the pinch bolts and dust cap.
- Mil-spec Type III hard-anodized finish for the ultimate in protection.
- A pair of Elevate Upper Control Arms with all needed hardware
Q: On your arms on car adjustable?
A: Yes, although we preset the length of the arm to allow for proper alignment for most popular lift heights, the arms do allow for on the car adjustment to fine tune your alignment.
Q: What size lift will the control arm work for?
A: The control arms were designed to work with Ford Ranger’s lifted 1-3” over stock using a replacement coilover.
Q: Are your control arms serviceable?
A: Yes, we offer replacement / service parts for the control arms uniball and rod ends.
- Stage 1 Lift w/ Performance Series – Part Number: K200
- Stage 1 lift w/ Factory Series – Part Number: K201
- Fox Performance Series Shock Package –Part Number: K900
- Fox Factory Series Shock Package – Part Number: K901
