ELEVATE SUSPENSION 3" BASIC LIFT KIT WITH FOX PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK'S, 2020+ CHEVROLET/GMC SILVERADO/SIERRA 2500HD/3500HD 2/4WD

The latest generation Chevy Silverado and GMC Sierra HDs are the best GM trucks yet—and our Elevate Suspension 3" packages make them even better. Designed for the 2500/3500HD, this kit combines our heavy-duty Chromoly Ball Joint Upper Control Arms (UCAs) with precision-forged steel torsion keys to deliver a true 3" lift. The result? Enhanced performance, superior durability, and straightforward installation. Now, you bundled our 3" Basic kit with the FOX performance 2.5 IFP HTO shocks and you're getting into serious territory now. The 2.5-inch diameter body offers significantly more oil capacity than the 2.0 series, which helps manage heat and provides smoother, more controlled damping over longer durations and rougher terrain.

FOX Performance 2.5 IFP HTO shocks:
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Key Attributes:

•        Stout 1.5-inch diameter Chromoly Ball Joint UCA's
•        3” Forged steel Keys & shock spacers
•        Fox Performance 2.5 IFP HTO Shocks
•        Provides additional ground clearance
•        Eliminating rake for a level stance
•        Enhanced performance and better suspension geometry
•        Fits a 35x12.5 tire with minimum trimming
•        Fits a 37/12.5 tire with more trimming.
•        Recommended 9" wide wheel with 0-1mm offset
•        Can fit a 10" wide wheel with -18mm offset

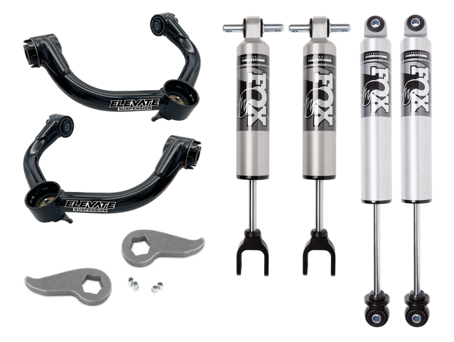

Whats Included:

•        Pair Chromoly Ball Joint UCA's
•        Black Ball Joint Caps
•        Pair 3" Torsion Keys with shock extensions
•        Front & Rear FOX 2.5 IFP HTO Shocks

FAQ:

Q: Does this Kit allow me to fit 37" tires?
A: Yes, but will require more inner fender trimming and a mud flap delete kit.
Q: Can I use reservoir shocks with this kit?
A: Yes, the shock package will provide previsions for mounting reservoir.
Q: Can I use factory wheels and tires?
A: No, The stock wheel offset may contact the tire to the UCA.
