FOX Factory Race Series 3.0 Rear Coil-Over W/Reservoir, 2-3.5" Rear Lift, 2021+ Ford Bronco 4WD

FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The DSC adjuster allows you to dial in your Bronco for load, environment, and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement. 2 Door | Without Sasquatch Package - 3.5" Lift 4 Door | Without Sasquatch Package - 3" Lift 2 Door | With Sasquatch Package - 2.5" Lift 4 Door | With Sasquatch Package - 2" Lift

• Front coil-overs provide 2-2.5" lift on base models and 3-3.5" lift on Sasquatch models
• 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body
• Application-specific springs
• 7/8" stainless steel shafts
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• Finned reservoir, with DSC adjuster
• Excludes Raptor submodel

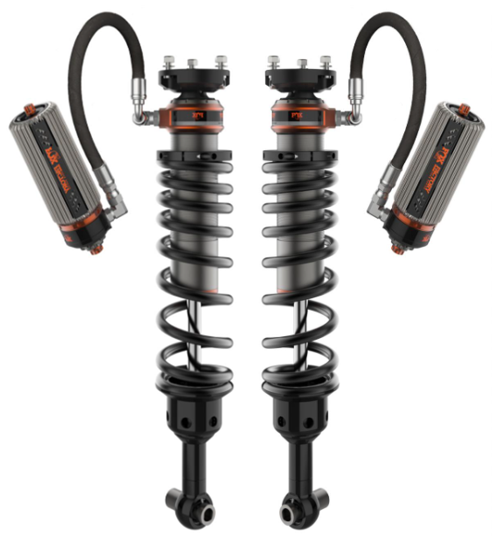

• Rear Pair Fox Factory Race Series 3.0 Coil-Overs w/ DSC Adjusters
• 883-06-205 x 1 Pair

Q: What height do the shocks come out of the box?

A: Typically, Fox Shocks will be pre adjusted to the highest setting per application. Example if the coilover is 2-3”, our experience shows that out of the box the vehicle will net close to 3” of lift. Fine tune adjustment can be made once installed.
